Nearly 15-year Experience of Electronics Manufacturing

LEABON provides one-stop PCB assembly services for electronics manufacturing, from components sourcing, PCB production, SMT, DIP, PCB assembly to finished-product assembly. With the superiority of large-scale purchasing (of IC, resistances, capacitance, inductance, diode and audion,etc.) and quality-first sense, we contract with the excellent component manufacturers from home and aboard to build long-term partnership, this makes sure of original quality and stable supply, aiming at transmitting the benefit to our clients. We have been working for the clients from US, Germany, Russia, Yemen, UAE, Japan, Spain, France, Italy, Israel, Iran, India, Mexico, Argentina, Colombia, etc.



Turnkey PCB Board Assembly Solutions
•Rapid Turnaround  •Prototype/Production Support  •Blank Boards»Components»Assembly  •Rapid On-line Quote
Since starting in 2006, LEABON has emerged as a trustworthy electronic contract manufacturer (ECM) to meet the demand of fast turnkey PCB assembly solutions. No matter whether it is a sample order or bulk order, we are always effective at reviewing and analyzing BOM and technical files, and quick to source components for rapid quotation. For the production and QC steps, some strict rules and regulations and KPI are available for every facility manager and worker. No quality for you, no life for us.

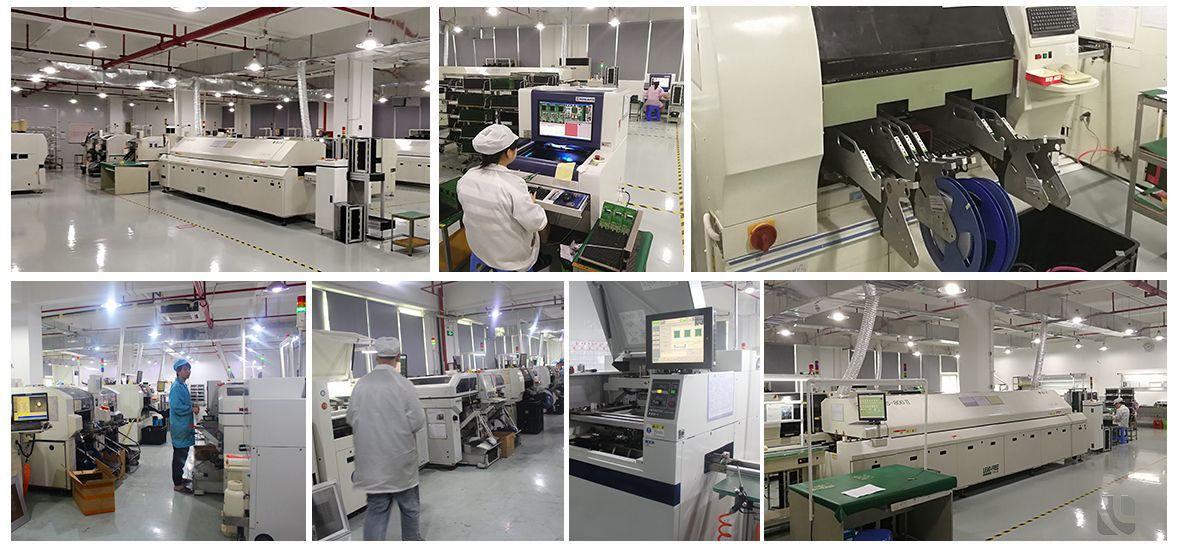

Ability of manufacturing			PCB Assembly Service					Facility List
4 SMT processing lines			Circuit board production (up to 12 layers, impedance, HDI, etc.)					Fuji CP8 Series Surface-mount Machine
1 DIP processing lines			SMT/DIP					Automated solder-paste printer
0201 components assy			ICT (In-Circuit Test)					10-zone Re-flow Soldering
0.25mm BGA			FCT (Functional Circuit Test)					AOI Detector
Surface-mount 4 million pins/day			BIT (Burn-in Test)					Wave-soldering
DIP 1 million pins/day			Box Building					ICT Working Platform

Supported Assembly Capabilities

Different types of Assembly
°THD (Thru-Hole Device)
°SMT (Surface-Mount Technology)
°SMT & THD combined
°2-sided SMT and THD assembly

Order Volume Allowed
°1 to 5,000 boards

Parts
°Passives parts, smallest size 0201
°Fine pitch to 8 Mils
°BGA, uBGA, QFN, POP and Zero-Lead chips
°Connectors and terminals

Component Package
°Reels
°Cut tape
°Tube and tray
°Loose parts and bulk

PCB Board Measurements
°Minimum measurement: 0.2″ x 0.2″ (5mm x 5mm)
°Largest dimension: 15″ x 20″ (381mm x 508mm)

Printed circuit board shapes
°Oblong
°Round
°Slots and Cut outs
°Complicated and Uncommon

PCB board kinds
°Rigid FR-4 boards
°Rigid-Flex boards

Assy procedures
°Leaded process
°Zero-Lead (RoHS)

Design file formatting
°Gerber RS-274X, 274D, Eagle as well as AutoCAD’s DXF, DWG
°BOM (Bill of Materials) (.xls, .csv, . xlsx)
°Centroid (Pick-N-Place Or XY file)

Testing Processes
°Visual Inspection
°X-ray Inspection
°AOI (Also known as: Automated Optical Inspection)
°ICT (AKA: In-Circuit Test)
°Functional testing

Turnaround time periods
°1 To 5 days for only printed circuit board assy
°10 To16 days for full Turnkey Circuit Card Assy
