On the basis of better chip sourcing channels, we manufacture LCD modules and kinds of communication modules such as low energy Wi-Fi communication modules based on ESP8285/ESP8266 series chips or AR9331, MT7601, RT5370 and RT5350 chips, 2.4GHz Bluetooth modules based on CC2540, etc., 2.4GHz Zigbee modules, GPRS/GSM communication modules based on CC3200/CC2530 chips, etc. Besides, we usually provide PCBA service based on the modules as our clients asked.

LCD Module

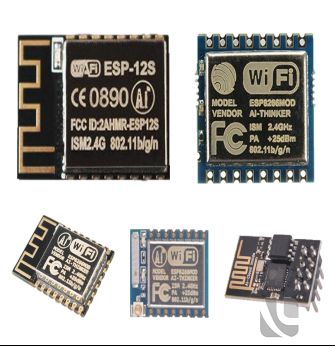

Low Energy Wi-Fi Module

				Chip Type		ESP8266-01/07/08/12S/12F (Hot Sellers)
				MCU Type		Tensilica L106 low-power 16/32 digits MCU
				Wireless Standard		IEEE802.11b/g/n 2.4G
				Port Type		GPIO, UART, SPI, etc
				Transmit Power		-20dBM~4dBm
				Key Features		Support TCP/IP protocol stack
						Support WPA/WPA2 security mode
						Support Smart Config function
						Support STA/AP/STA+AP working modes
						Power consumption less than 1.0 mW (DTIM3) in standby status
						Support AT remote and Cloud OTA upgrading
						Built-in TR switch, balun, LNA, power amplifier and matching network
						Working voltage range is 2.4V ~ 3.6V

Bluetooth Modules HC05/HC06 & HM10/HM11(Low Energy)

					HC05/HC06		Bluetooth Protocol: BLE V2.0+EDR
							Power Consumption: 3.3VDC 50mA
							Chip Solution: CSR BC417143
							HC05 supports >30 AT commands, HC06 only supports few AT commands
					HM10/HM11		Chip Solution: TI CC2540
							Memory Size: 256KB
							Support AT commands
							Working Voltage: usually 3.3VDC
